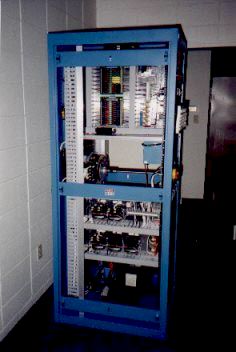

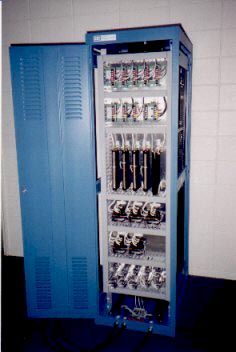

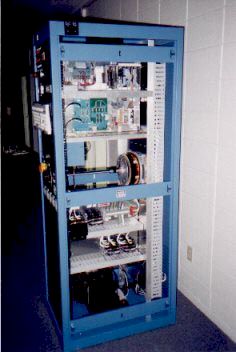

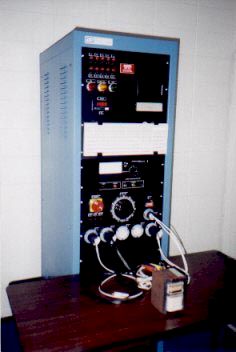

HIDBallast-1-600-10.jpg (14395 bytes)    HIDBallast-2-600-10.jpg (17123 bytes)    HIDBallast-3-600-10.jpg (18650 bytes)    HIDBallast-4-600-10.jpg (16774 bytes)



                             Click on image for larger picture







HID Ballast Tester



High Intensity Discharge Ballasts



         production line full function testing

  •   automatic test sequence

    • primary DC resistance

    • open circuit voltage

    • magnetizing current

    • tap voltages

    • secondary / starter tap volts

    • unloaded power

    • loaded power

    • line current

    • secondary current

  •   embedded IBM PC compatible computer control

         front panel keyboard and 4 x 20 alphanumeric display

         data logging to floppy disk

         full menu guided operation with extensive utilities

         recipe editor for test recipe generation

         easy transfer of test recipes to tester

  •   roll-around integral support stand for easy mobility

  •   optional data logging to high speed network
