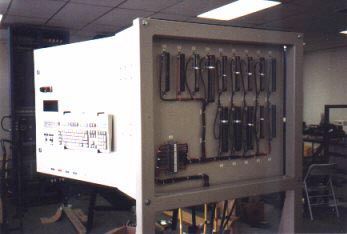

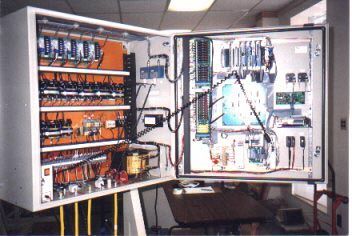

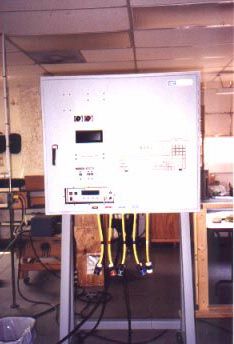

LTS960C HID Luminaire Tester

High Intensity Discharge Lighting Fixtures and Ballasts



         production line full function testing

         automatic test sequence - approximately 15 seconds

o        ground continuity

o        hipot

o        ground leakage current

o        input voltage

o        photo control relay

o        open circuit voltage

o        magnetizing current

o        tap voltages for quad ballast

o        high voltage starter pulse amplitude above threshold

o        high voltage starter pulse position

o        high voltage starter pulse count

o        quartz lamp socket voltage

o        short circuit current

o        primary current with load

o        secondary current with load

o        hi / lo power level test

o        rated power measurement

o        power/input VA ratio check

o        socket polarity check

o        optional HID ballast only test

o        optional fluorescent fixture test

         embedded IBM PC compatible computer control

         front panel keyboard and 4 x 20 alphanumeric display

         data logging to floppy disk

         full menu guided operation with extensive utilities

         barcode entry of model/style numbers

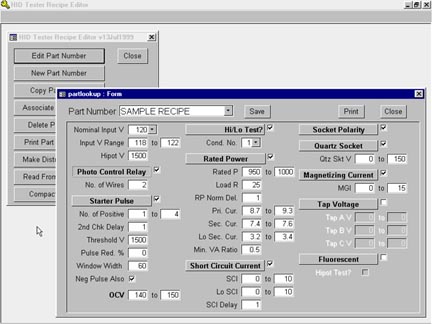

         windows based recipe editor for test recipe generation

         easy transfer of test recipes to tester

         roll-around integral support stand for easy mobility

         optional input watts for EHID ballasts

         optional non-inductive loads for EHID start and run conditions

         custom test sequences for Universal, Metrolight, and Venture EHID ballasts

         optional electronic power supply

         optional data logging to high speed network





LTS900-1.jpg (12503 bytes)    LTS900-2.jpg (14149 bytes)    LTS900-3.jpg (19361 bytes)    LTS900-4.jpg (18966 bytes)






Click on image for larger picture

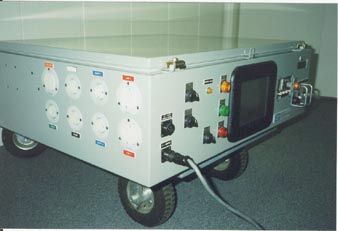

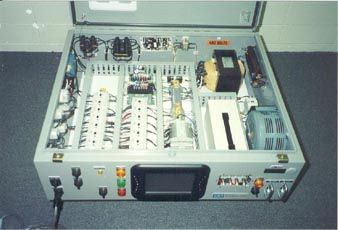

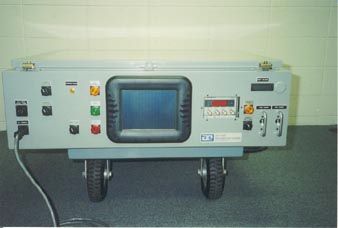

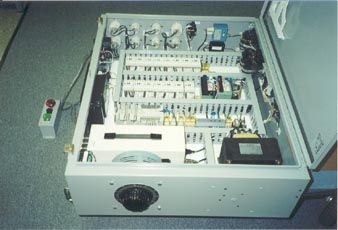

LTS900 HID Luminaire Tester

High Intensity Discharge Lighting Fixtures and Ballasts

  • production line final testing

  • automatic test sequence - approximately 10 seconds

    • ground continuity - required test

    • hipot test - required test

    • input voltage - 120, 208, 220, 240, 277, 347, 480 VAC - required test

    • photo control relay - optional test

    • open circuit voltage - required test

    • high voltage starter pulse detection - optional test

    • quartz lamp socket voltage - optional test

    • input current - 0 to 20 AAC - optional feature

    • short circuit secondary current - 0 to 15 AAC - required test

    • hi / lo power level test (shorted capacitor control) - optional test

    • lamp socket polarity check - optional test

  • Allen-Bradley MicroLogix 1200 PLC control

  • front panel color touch screen operator interface

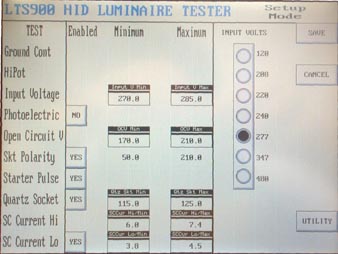

  • setup screen for operator selection of tests to be performed

  • setup screen for operator entry of min and max values of test parameters

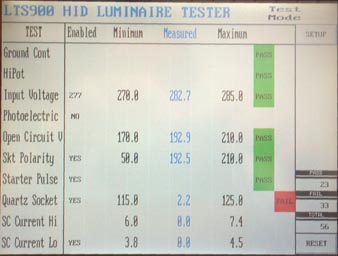

  • test screen displays test steps and tests selected

  • test screen displays min and max  test parameter setpoints

  • test screen displays measured test parameter values with pass / fail flags

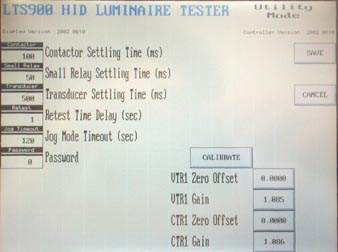

  • utilities screen for prompted tester calibration procedure

  • utilities screen to display and allow access to system calibration factors and timing functions

  • utilities screen access password protected

  • dual line (line 1 and line 2) connections with manual selector switch

  • dual socket (socket 1 and socket 2) connections with manual selector switch

  • remote pendant box with START, FAIL ACKNOWLEDGE, and E-STOP pushbuttons

  • interface connector for automatic lamp socket probe hookup fixture

  • 36 x 36 x 12 inch NEMA enclosure

  • optional rollaround cart

  • optional data collection with network connection
