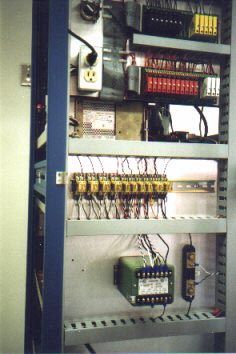

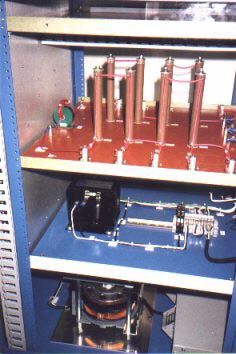

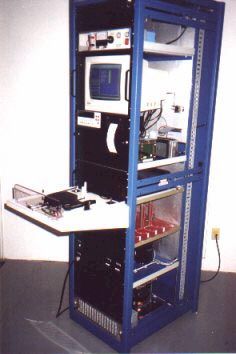

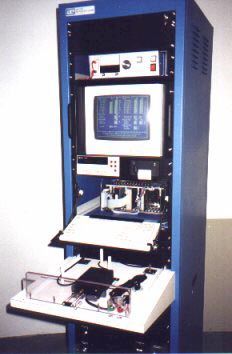

ElecNeonBallast-1-600-10.jpg (17250 bytes)     ElecNeonBallast-2-600-10.jpg (17526 bytes)    ElecNeonBallast-3-600-10.jpg (23014 bytes)    ElecNeonBallast-4-600-10.jpg (21631 bytes)

                            Click on image for larger picture

Electronic Neon Ballast Tester

Electronic Neon Ballasts



         pre-pot and end of line production testing

         test triggered automatically by sensing ballast

         automatic test sequence

o        short circuit

         input power

         output current

         mercury migration

o        loaded

         input power

         input current

         output current

o        ground fault

o        overvoltage shutdown

o        hipot

         test parameters set in online editor

         operator selection and deselection of tests

         pass/fail ticket

         shift summary ticket

         calibration in software without hardware adjustment

         data logging for SPC

         optional data logging to network

         extensive utilities for backup and test parameters

  •   embedded IBM PC compatible computer
