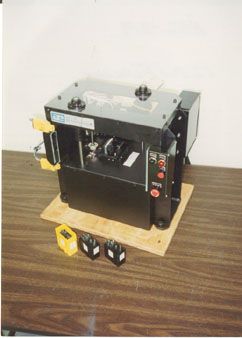

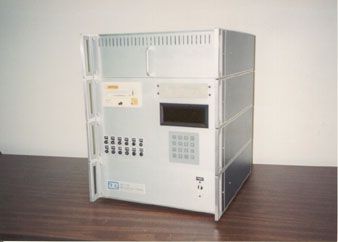

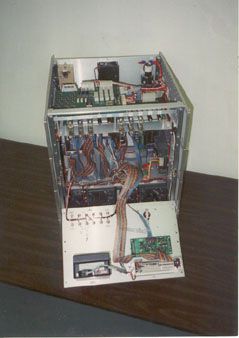

ElectronicFlasher-1.jpg (10391 bytes)    ElectronicFlasher-2.jpg (14823 bytes)    ElectronicFlasher-3.jpg (14483 bytes)



                         Click on image for larger picture



Electronic Flasher Modules



·         production line testing

·         36 tests - 30 second test cycle time

·         test triggered automatically by sensing module in fixture

·         dual position test head for testing different type modules

·         automatic test sequence

o        standby current

o        start time

o        flash rate and duty cycle

§         hazard mode

§         normal mode

§         bulb outage mode

o        input power consumption

o        millivolt drop ( 4 terminal measurement)

·         self test of module power supply and load circuitry every test cycle

·         pass/fail tickets

·         summary statistics tickets

·         data logging for SPC

·         date code stamping for passed modules

·         operator acknowledgement of failed units before release

·         calibration in software without hardware adjustment

·         embedded IBM PC compatible system

·         extensive multi-level utilities for

o        test parameters

o        test mode

o        tester diagnostics

o        model selection
