IRON ELECTRONIC CONTROL CIRCUIT BOARD

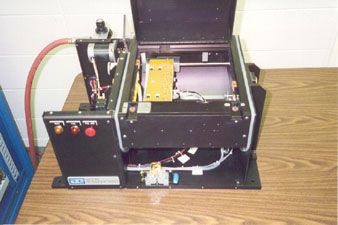

         production line functional and in-circuit testing

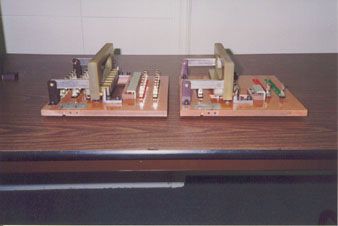

         multi-board pallet testing with single board testing capability

         test triggered automatically

         test sequence set by recipe

  •          in-circuit testing of component values

  •          reverse diode and capacitor detection

  •          full functional testing

  •          data collection

  •          override circuit clock to accelerate test

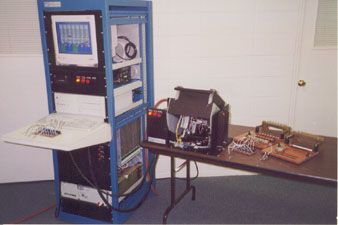

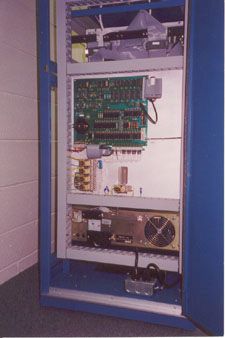

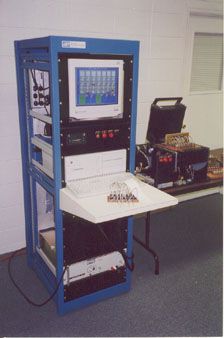

         IBM PC compatible based test system

         test parameters set in online editor

         graphical display of test results

         pass/fail ticket printing

         software calibration and diagnostics

         extensive utilities to control tester setup and operation
