Modular Wiring Products





• tests these components

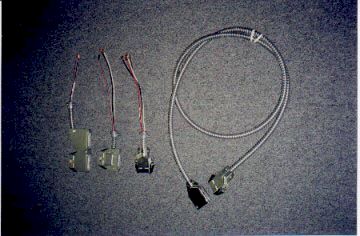

• cables

• taps

• distribution

• lighting switched units

• junctions

• splitters

• extenders

• adapters

• pigtails

• quick connect plugs

• comprised of

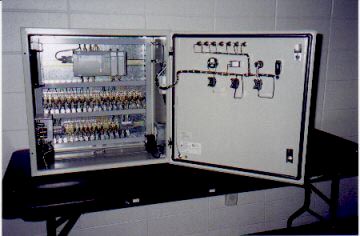

• control enclosure

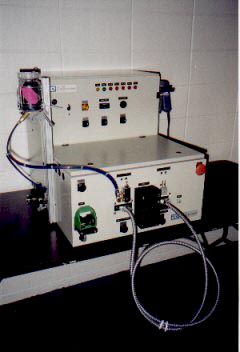

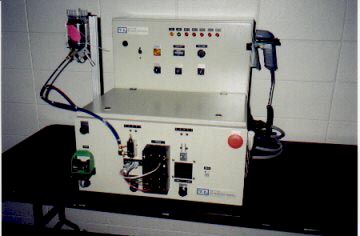

• cable and pigtail test fixture

• switched units test fixture

• adapter test fixture

• PLC based

• laser barcode scanner for part number entry to select test program

• all part numbers and test programs stored in tester

• automatic test cycle of 5 seconds

• hipot test between ground pin/housing and all other conductors

• continuity test of each conductor

• test for opens and shorts between other conductors

• automatic latch of housing upon insertion in fixture

• optical touch switch for test start

• ink marker applies ink spot on passed part housing

• fail acknowledge required to release failed parts

• run / jog modes

• passed parts counter

• five fail lamps / audible alarm
