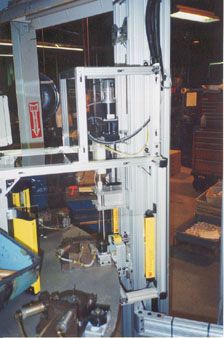

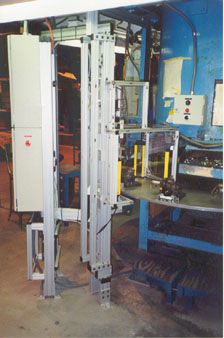

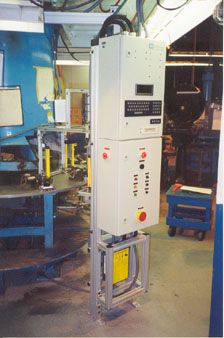

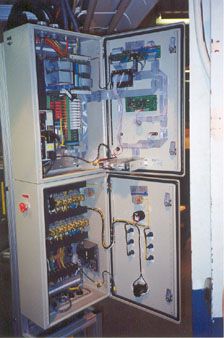

Automotive Starter Solenoid Overtravel Tester



Starter Solenoid Overtravel



  • performs selected number of contact exercise cycles

  • performs overtravel measurement after last exercise cycle

  • optional repeat test on failure

  • failure annunciation at following assembly station

  • automatic detection of different height parts

  • tester integrated into existing production line

  • test triggered automatically on production line index/dwell

  • IBM PC compatible based test system

  • high performance stepping motor drive/translator system

  • test parameters set in offline Visual Basic based editor

  • extensive utilities to control tester setup and operation

  • display of test results

  • data collected from tester placed in plant network server database
